PRODUCTS

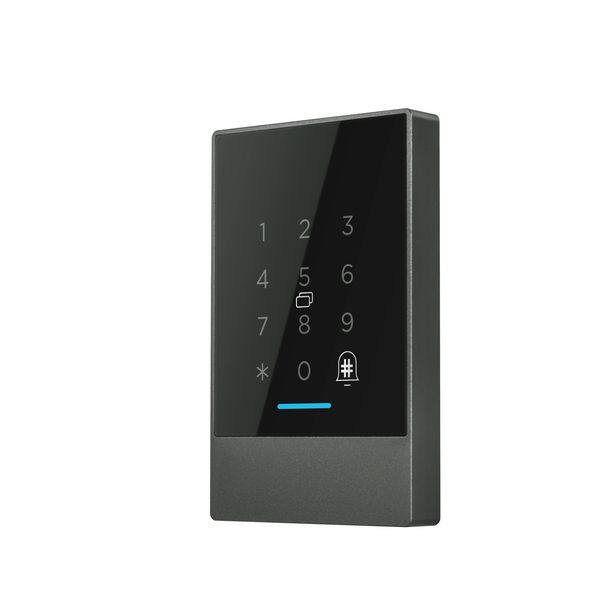

•  Model: K3/K3F
• Dimensions: W80mm xH126mm x T19mm
• Material: ABS/Acrylic panel
• Supporting systems: Android 4.3/IOS7.0 above
• Stand-by current: 28mA (Activate back lighting)
  Operating current: ≈1A
• Power supply: DC 12V
• Waterproof level: IP67
• Card capacity: 2000
• Number of Passwords: 500
• Fingerprint capacity*: 100 (K3F only)

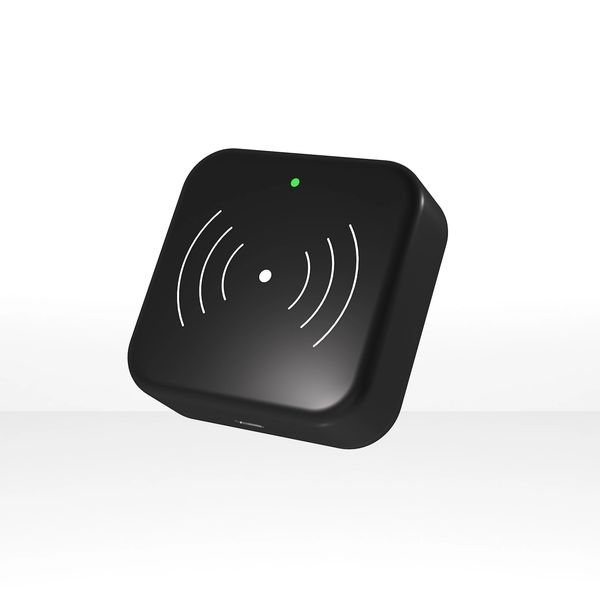

•  Model: E3
• Dimensions: 70mm x 70mm x 26mm
• Power interface: Type-C USB
• Power input: 5V/500mA
• Radio frequency: 13.56Mhz
• Support card type: MiFare S50

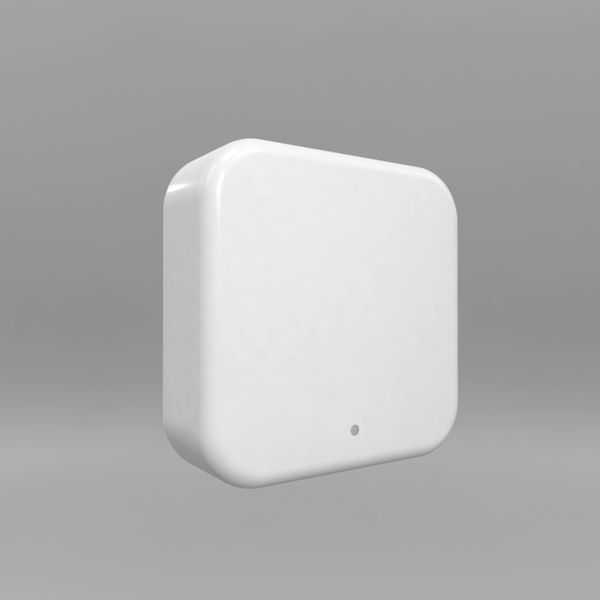

 GATEWAY G2

• Model: G2
• Dimensions: 70mm x 70mm x 26mm
• Network: WiFi 2.4G
• IEEE standard: 802.11 b/g/n
• Power interface: Type-C USB
  Power input: DC 5V/500mA

GATEWAY G3

• Model: G3
• Dimensions: 70mm x 70mm x 26mm
• Network port interface: RJ45
• Network port rate: 10M
• IEEE standard: 802.3
• Power interface: Type-C USB
• Power input: 5V/500mA

GATEWAY G3P

• Model: G3P
• Dimensions: 70mm x 70mm x 26mm
• Network port interface: RJ45
• Network port rate: 10M/100M
• IEEE standard: 802.3
• Power interface: Type-C USB/PoE
• Power input: 500mA

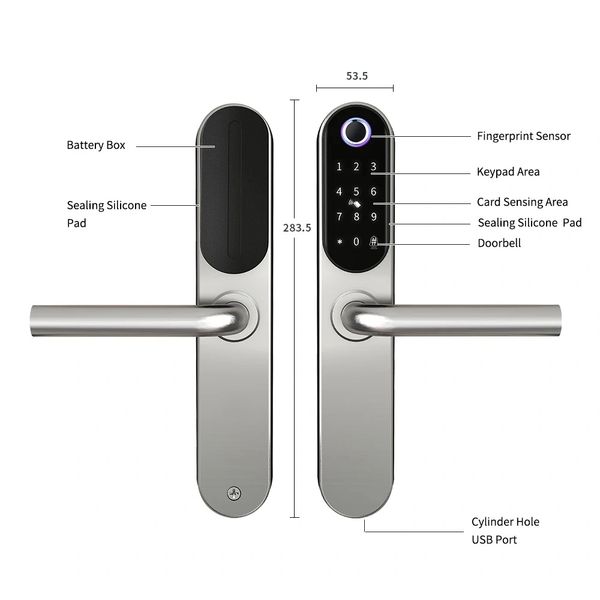

• Aluminium alloy handles with self-lubricating long life bearings.
• 2-point steel latch construction with an anti-friction mechanism.
• Panic release function ‒ the deadbolt and latch are automatically retracted by inside handle for easy regress in emergency situations.
• Long lasting
• Escutcheon and durable handle levers.
• Powered by four (4) AAA batteries that provide up to 12-18 months normal life.
• Customize key cards for customer.
• Unlock with App,IC cards, password, Fingerprint and mechanical keys.
• Check all open records on GCS App.
• Easy to install,less hole on the door.
• Insist emergency charge when the battery low power.
• Lockcase made of stainless steel,improve safety factor.
